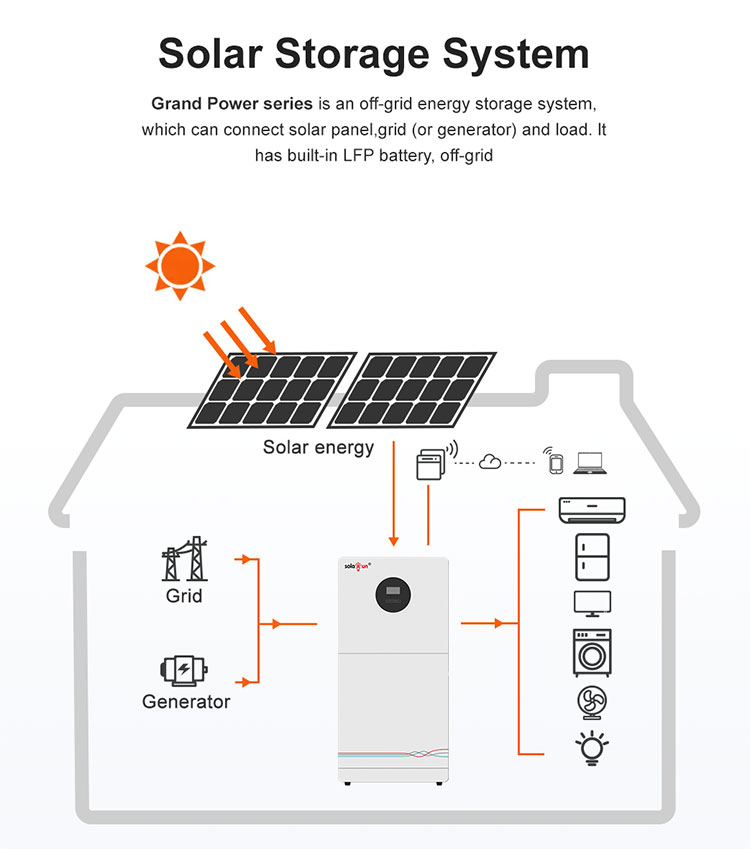

5kWh Solar Home Energy Storage System

5kWh Solar hom Energy Storage System with Lifepo4 Battery

5kWh Solar home Stackable Monocrystalline Silicon Energy Storage System with Lifepo4 Battery

‌High-Performance Output‌ 6kW rated power & 12kW peak power for diverse energy demands.
‌Solar Energy Optimization‌ 7kW max PV input with 27A current and wide MPPT range (60-450VDC), maximizing solar conversion efficiency.
‌Scalable Energy Storage‌ Modular 5.12-15.36kWh capacity to flexibly match household/business needs.
‌Robust Connectivity & Protection‌ Multi-protocol support (RS485/CAN/Bluetooth/WiFi) + IP65 rating for all-weather durability.

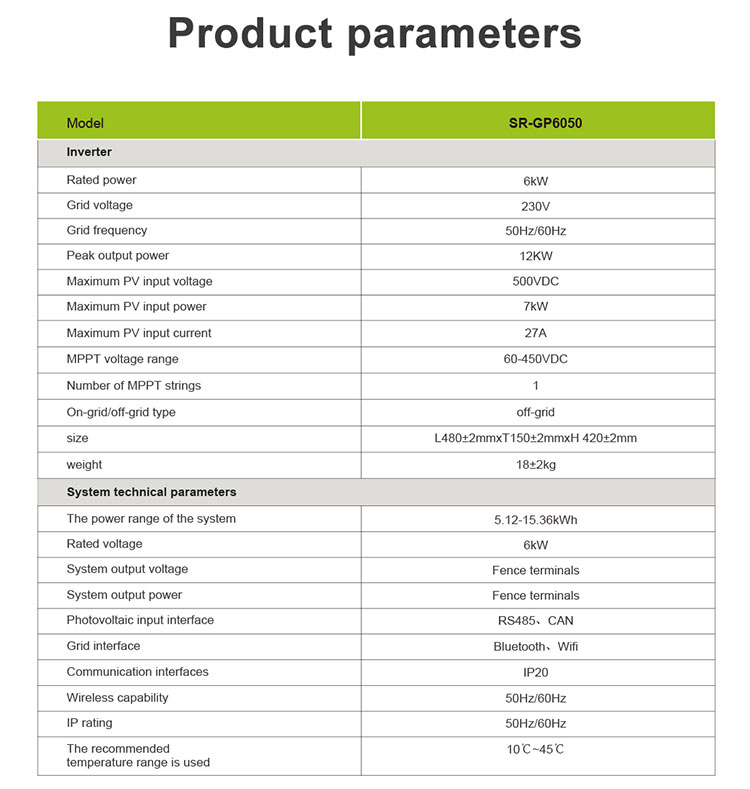

Model	SR-GP6050
Inverter
Rated power	6kW
Grid voltage	230V
Grid frequency	50Hz/60Hz
Peak output power	12KW
Maximum PV input voltage	500VDC
Maximum PV input power	7kW
Maximum PV input current	27A
MPPT voltage range	60-450VDC
Number of MPPT strings	1
On-grid/off-grid type	off-grid
size	L480±2mmxT150±2mmxH 420±2mm
weight	18±2kg
System technical parameters
The power range of the system	5.12-15.36kWh
Rated voltage	6kW
System output voltage	Fence terminals
System output power	Fence terminals
Photovoltaic input interface	RS485、CAN
Grid interface	Bluetooth、 Wifi
Communication interfaces	IP20
Wireless capability	50Hz/60Hz
IP rating	50Hz/60Hz
The recommended temperature range is used	10℃-45℃
