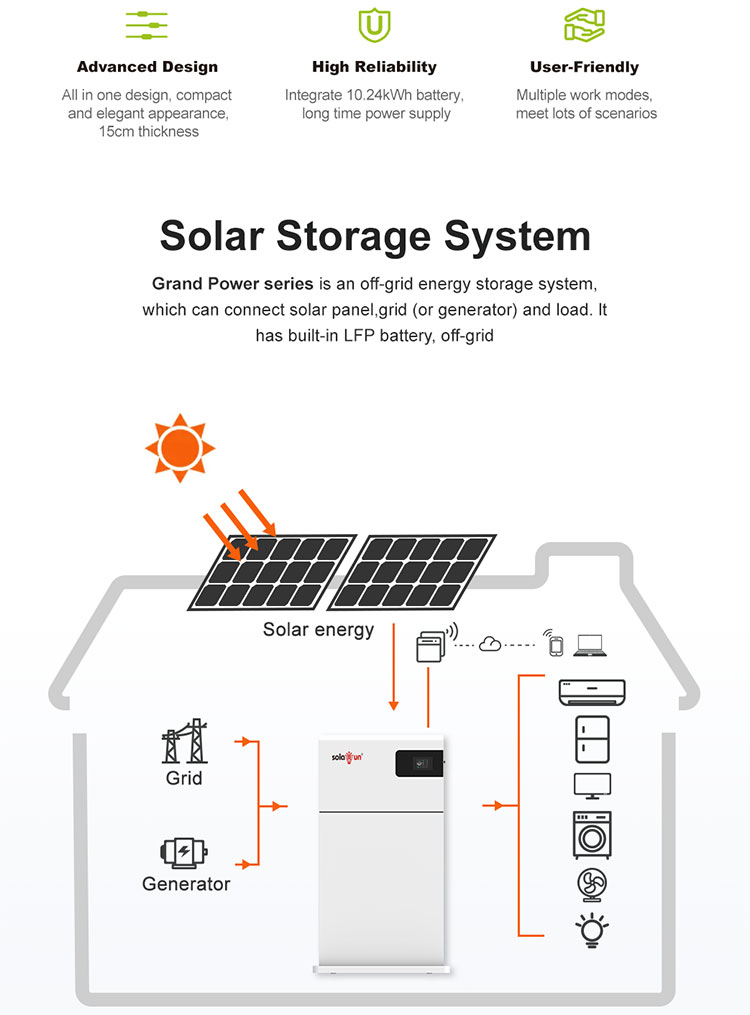

10kWh Solar Energy Storage System
5Kwh Solar Energy Storage System.Scalable Output Power: Max. 2 inverters in parallel to enable 10kW output powerScalable Battery Capacity: Max. 3 battery packs in parallel, increasing battery capacity to 20.48kwh.

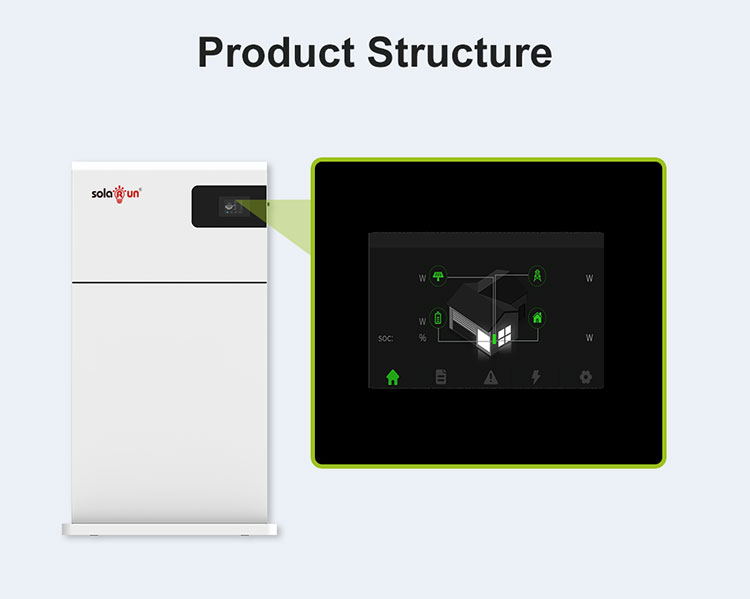

Bypass Design: Equipped with manual bypass switch in case of equipment failure. Smart interface: With Wi-Fi connection, can track real-time data through LCD screen and APP
Features List
1. High-Capacity & Long-Lasting LFP Battery
Features a 10.24 kWh Li-ion (LFP) Class A battery with 6,000 cycles at 25°C, 100% DOD, ensuring reliability and extended lifespan.
2. High-Power Backup Output & Efficiency
Delivers 5,000W rated AC output with >92% peak efficiency and pluggable connectors for versatile backup power solutions.
3. Robust Solar Charging Capability
Supports up to 5,500W PV input with a wide MPPT range (120–430V), enabling efficient solar energy harvesting even in suboptimal conditions.
4. Wide Compatibility & Certifications
Operates across broad voltage ranges (AC input: 90–280V, battery: 44.8–57.6V) and temperatures (-10–50°C discharge), backed by CE, UN38.3, and IUV certifications for safety and adaptability.
Video

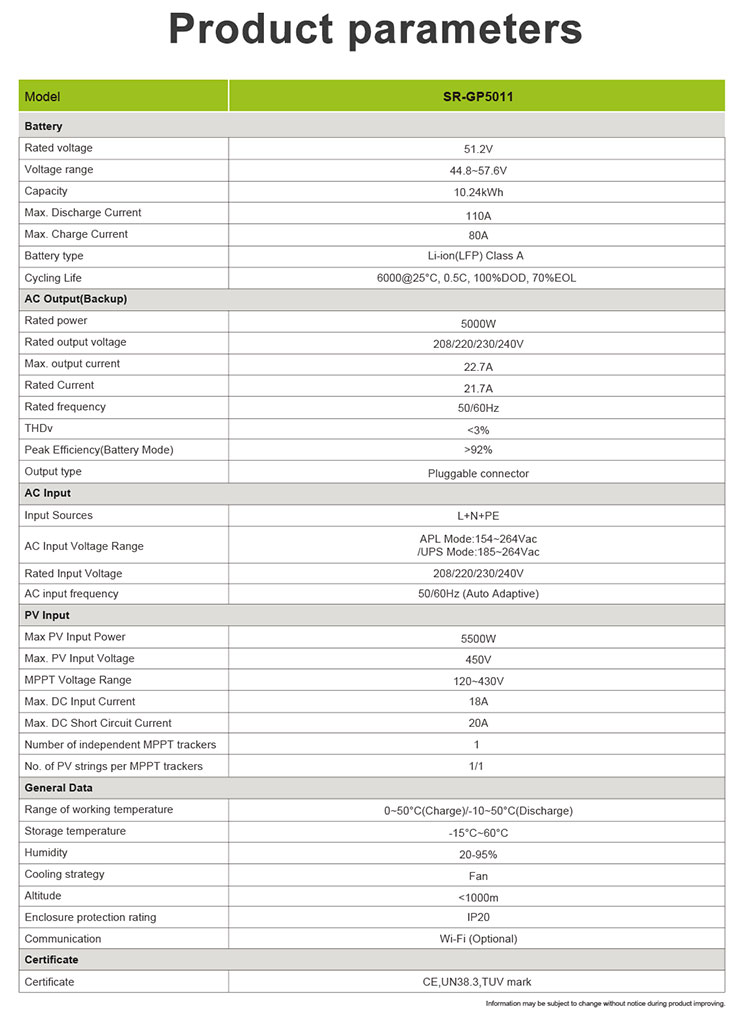

Specifications
Model | SR-GP5011 |
Battery | |
Rated Voltage | 51.2V |
Voltage Range | 44.8-57.6V |
Capacity | 10.24KWh |
Max. Discharge Current | 110A |
Max. Charge Current | 80A |
Battery Type | Li-ion(LFP)Class A |
Cycling Life | 6000@25°C, 0.5C, 100%DOD, 70%EOL |
AC Output(Backup) | |
Rated Power | 5000W |
Rated Output Voltage | 208/220/230/240V |
Max. output cunent | 22.7A |
Rated Current | 21.7A |
Rated Frequency | 50/60Hz |
THDv | <3% |
Peak Efficiency(Battery Mode) | >92% |
Output Type | Pluggable connector |
AC Input | |
Input Sources | L+N+PE |
AC Input Voltage Range | APL Mode:90-280Vac /UPS Mode:170—264Vac |
Rated Input Voltage | 208/220/230/240V |
AC input frequency | 50/60HZ (Auto Adaptive) |
PV Input | |
Max PV Input Power | 5500W |
Max PV Input Voltage | 450V |
MPPT Voltage Range | 120-430V |
Max. DC Input Current | 18A |
Max. DC Short Circuit Current | 20A |
Number of independent MPPT trackers | 1 |
No. of PV Strings per MPPT trackers | 1/1 |
Certificate | CE.UN38.3,IUV marh |
Certification
