10kWh ESS

10kWh Solar home Energy Storage System with Lifepo4 Battery

10kWh Solar home Stackable Monocrystalline Silicon Energy Storage System with Lifepo4 Battery

‌Inverter Parallel, Phase Upgrading The 6KW inverter supports parallel, max supports 6pcs parallel.Three inverters paralleled to be 3-phase 380V system.
‌EVE A-Grade Battery Cell EVE A-Grade battery cell, 6000 cycles, 5 years warranty.
‌3-In-One House-Hold ESS Intelligent EMS, support App remote settings and operation.
‌Dual Output PCS, Support Dual AC output Intelligent BMS with over Charge & Discharge/Over Current/Short-Cut Protect, Temperature Detect etc.

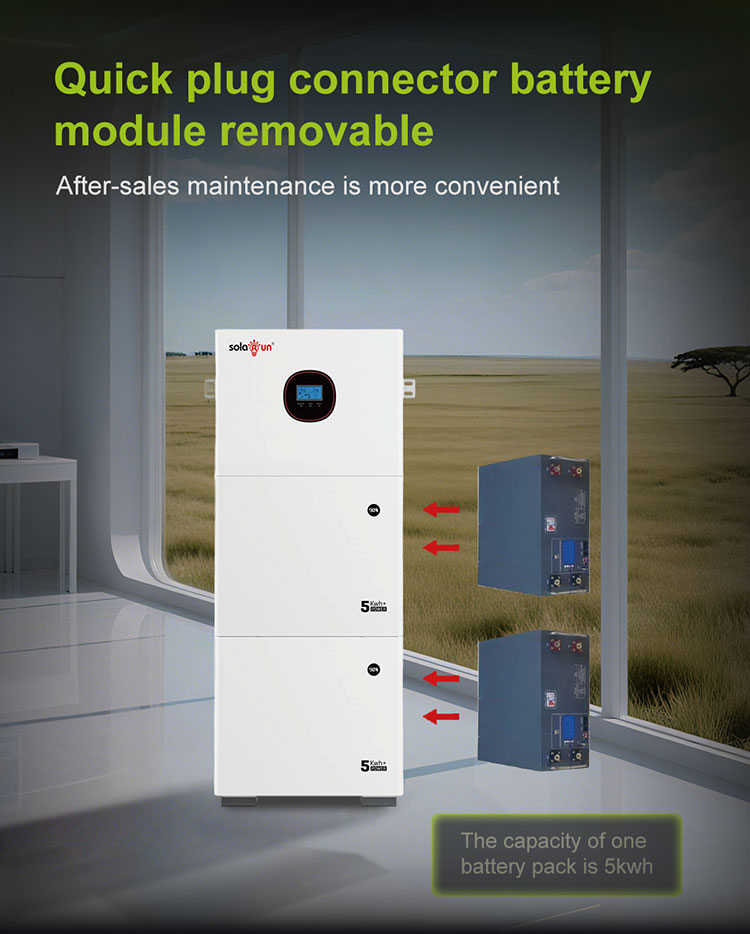

Battery Expansion The battery capacity can be flexibly expanded according to consumer needs and can be expanded to10.24kWh (2 pcs batteries), 15.36kWh (3 pcs batteries), and up to 20.48kWh (4 pcs batteries).

Model	SR-GP6011
Inverter
Rated power	6kW
Grid voltage	230V
Grid frequency	50Hz/60Hz
Peak output power	12KW
Maximum PV input voltage	500VDC
Maximum PV input power	7kW
Maximum PV input current	27A
MPPT voltage range	90-450VDC
Number of MPPT strings	1
On-grid/off-grid type	off-grid
size	L470±2mmxT150±2mmxH 1310±2mm
weight	114.2kg
System technical parameters
The power range of the system	5.12-15.36kWh
Rated voltage	6kW
System output voltage	Fence terminals
System output power	Fence terminals
Photovoltaic input interface	RS485、CAN
Grid interface	Bluetooth、 Wifi
Communication interfaces	IP20
Wireless capability	50Hz/60Hz
IP rating	50Hz/60Hz
The recommended temperature range is used	10℃-45℃
