1kWh Portable Off-Grid Solar Energy Storage System

1kWh Mini Cube ESS with paygo. High Energy Capacity Lightweight and Compact: Despite its high energy capacity









Features List


1. Compact and Efficient Energy Storage Solution:
The SR1000PG Mini Cube ESS is a portable, all-in-one energy storage system with a rated energy capacity of 1.004 kWh, designed for reliable power backup and daily use.

2. Versatile Power Management:
*Supports multiple input sources: PV (solar) input with a maximum of 300W, AC input (170-280V), and grid power.
*Provides pure sine wave AC output with a surge power of 350VA and high efficiency (88%), suitable for sensitive electronics.
*Features fast transfer time (10ms) for seamless power switching.

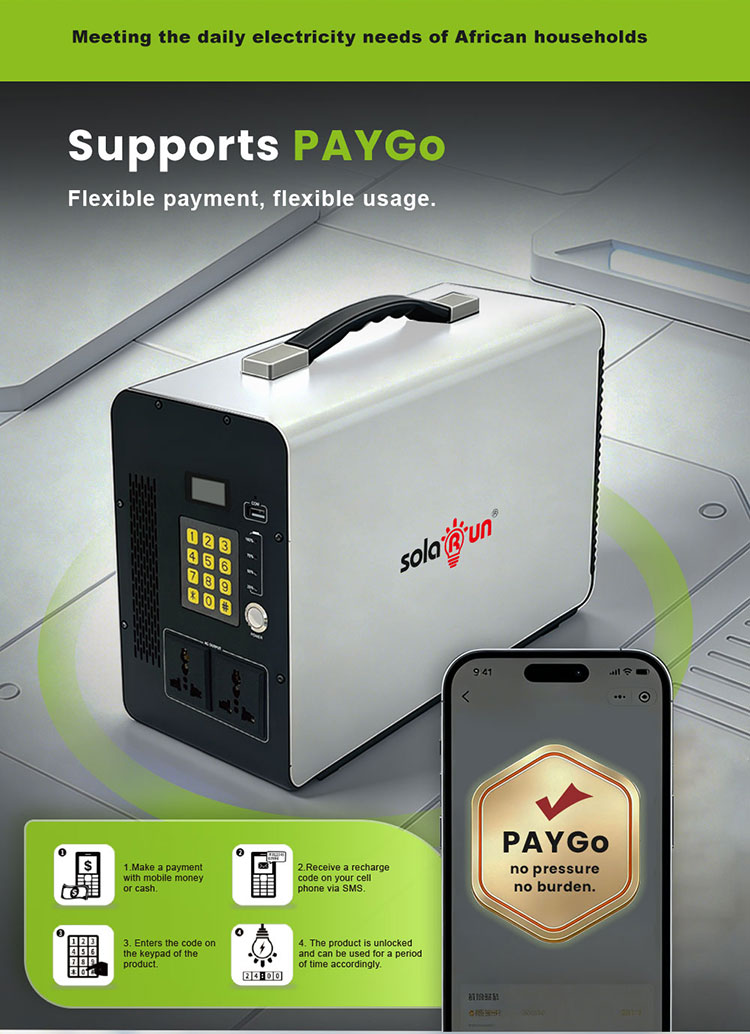

3. User-Friendly and Flexible Payment System (Pay-As-You-Go):
*Integrated PayGo platform compatibility (e.g., Kpay, Paygops) allows users to recharge via mobile money or cash, receiving codes via SMS for easy activation.
*Simple token entry process via keypad, with LCD display for credit monitoring.
*Includes security measures like a 30-minute lockout after 5 failed attempts to prevent misuse.

4. Durable and Adaptive Design
*Robust environmental tolerance: operates in 0-45°C charging and -20-60°C discharging ranges, with storage capability from -20-45°C and humidity resistance (5-95% RH).
*Long service life: over 6,000 cycles and a 5-year design life, ensuring longevity and value.
*Suitable for diverse elevations (up to 4000M above sea level).

5. Easy Maintenance and Safety
*Regular maintenance guidance, such as fully charging the battery every 3 months.
*Safety warnings to keep the device away from fire and water, emphasizing user protection.

Video

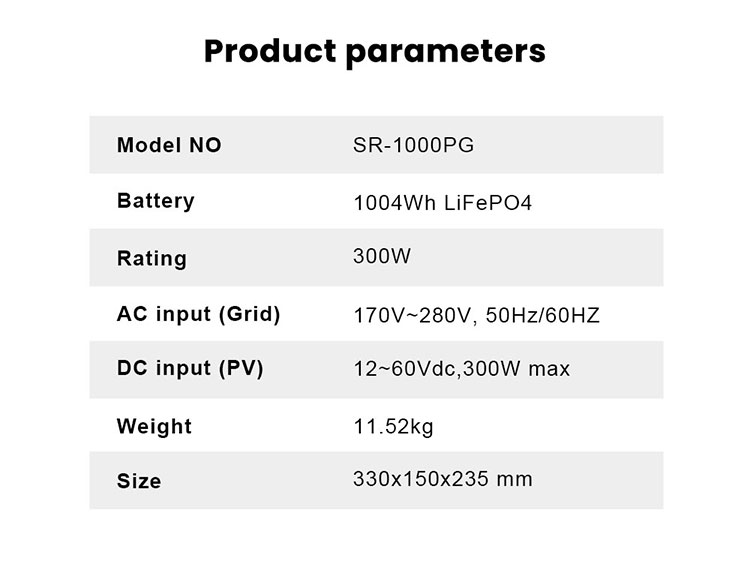

Specifications

Model NO
SR1000PG
Battery
1004Wh LiFePO4
Capacity
314Ah
AC input(Grid)
170v-280v, 50-60HZ
DC input(PV)
12-50Vdc,300max
AC input
230Vac
Cycle Life
>6000

Certification

Apollo Certification
